How to Set Up the CTEK SmartPass 120: The Complete Dual Battery Management Guide for Indian Car Owners

You installed a second battery in your car — a subwoofer setup, a camping inverter, or a dash cam that runs overnight — and within two weeks, your main battery was completely dead on a Monday morning in Bangalore traffic. Sound familiar? This is the single most expensive mistake Indian car owners make when adding accessories: they treat both batteries as one system, and they pay for it every time.

A dead battery in peak summer heat (we're talking 45°C+ in Delhi or Nagpur) or getting stranded during the monsoon because your alternator drained itself trying to charge two batteries unevenly — these aren't small inconveniences. A tow, a new battery, and a lost workday can cost you anywhere between ₹3,000 and ₹8,000 in one shot. And the worst part? It was completely preventable.

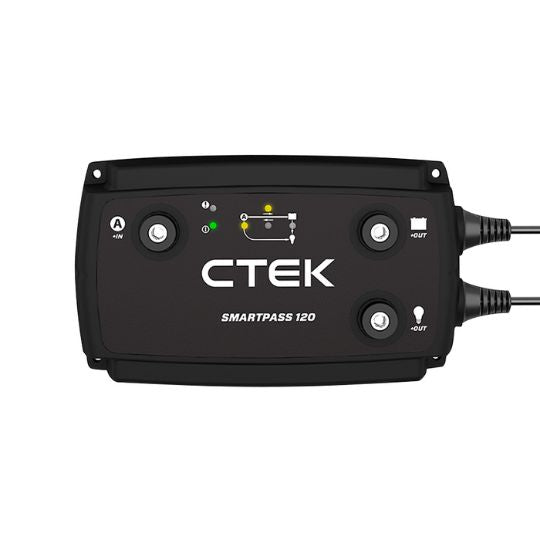

The CTEK SmartPass 120 | Advanced Dual Battery Management System for India exists precisely to solve this problem — and setting it up correctly is the difference between a system that works flawlessly for years and one that damages your alternator, voids your car warranty, or leaves you stranded. This guide walks you through every step, written specifically for Indian roads, Indian weather, and Indian cars.

Why Does Your Dual Battery Setup Keep Failing in Indian Conditions?

Most Indian car owners who run dual battery setups — whether for a music system, a tyre inflator, an inverter for long highway drives on the Mumbai–Pune Expressway, or overlanding gear on a Thar — use a simple isolator relay. That relay worked fine in 1995. Today's cars, including modern variants of the Maruti Suzuki Vitara, Hyundai Creta, and Kia Seltos, use smart alternators with variable voltage output. A standard relay simply cannot communicate with these systems.

The result? Your alternator overworks, your fuel efficiency drops, your batteries charge unevenly, and eventually something fails. According to automotive experts at Autocar India, premature battery failure is one of the top five electrical complaints in Indian workshops. The CTEK SmartPass 120 solves this by acting as an intelligent current manager — it handles up to 120A of current, prioritises your starter battery, and only begins charging your secondary battery once the primary is fully protected.

Before You Start: What You'll Need

Gather everything before you begin. Stopping mid-installation to hunt for a tool is how mistakes happen — especially if you're working outdoors in Chennai's afternoon heat or a dusty Pune driveway.

Important: Always disconnect the negative terminal of your main battery before beginning any electrical work. If your car is still under warranty — particularly if you own a Hyundai i20, Tata Altroz, or Kia Sonet — check with your authorised service centre first. You can verify your car's electrical specifications on your manufacturer's official site: Maruti Suzuki, Hyundai India, or Tata Motors.

Step-by-Step: Installing the CTEK SmartPass 120 Correctly

Step 1 — Plan Your Layout Before Touching a Single Wire

Open the bonnet and identify where your primary (starter) battery and secondary (leisure/auxiliary) battery are located. The SmartPass 120 needs to sit between them. In vehicles like the Mahindra Scorpio or Thar, there's usually adequate space near the firewall. In compact cars like the Maruti Baleno or Honda City, you may need to mount the unit in the boot. Sketch a rough wiring diagram — even on paper — before you start. Why this matters: Poor cable routing in Indian conditions leads to chafing against sharp metal edges, especially on potholed roads. A short circuit from a chafed wire is dangerous and expensive.

Step 2 — Mount the CTEK SmartPass 120 Unit Securely

Use the mounting bracket included with the unit. Position it away from direct heat sources like the exhaust manifold. If you're mounting it in the engine bay — common in SUVs like the Hyundai Creta or Kia Seltos — fit it inside the CTEK Bumper Case 120 first. This protective case is critical in Indian conditions: it shields the unit from monsoon moisture, engine bay dust on highways like the Delhi–Jaipur route, and the radiant heat that can push under-bonnet temperatures well above 80°C in summer. Secure the mount firmly — vibration from potholes and rough roads is a real enemy of loose components.

Step 3 — Connect the Primary Battery (Starter Battery)

Run your positive cable from the SmartPass 120's "Battery 1" terminal to the positive terminal of your starter battery. Use a minimum 6mm² cable for runs under one metre; go to 10mm² for longer runs. Fit an in-line fuse (40A recommended) within 30cm of the battery terminal — this is your safety net if anything goes wrong downstream. Use ring terminals that are properly crimped and heat-shrunk. A loose terminal is the number-one cause of intermittent electrical faults that confuse even experienced mechanics. Watch out for: Overtightening battery terminals on older batteries can crack the casing — apply firm but controlled torque.

Step 4 — Connect the Secondary Battery (Leisure/Auxiliary Battery)

Run your cable from the SmartPass 120's "Battery 2" terminal to the positive terminal of your secondary battery. Again, fuse this line within 30cm of the secondary battery's positive terminal. The SmartPass 120 is intelligent enough to understand which battery needs charging priority — it always protects your starter battery first, so you're never left unable to start your car. This is particularly important for those who run heavy accessories overnight, like a dashcam or camping fridge on a Himalayan road trip. Connect the ground (negative) cables from both batteries to a solid, clean chassis earth point — rust or paint will give you a poor earth, which causes all sorts of mysterious electrical gremlins.

Step 5 — Install the CTEK Comfort Connect Eyelet on Your Primary Battery

The CTEK Comfort Connect Eyelet M8 bolts permanently to your battery terminal and gives you a clean, weather-sealed port to plug in a CTEK charger whenever you want — no more fumbling with crocodile clips in the dark. This is especially handy during the winter months in Delhi and North India, when batteries lose charge faster in the cold, or during long festival-season parking when your car sits unused for days. Fit the eyelet now, while you have the battery terminals exposed.

Step 6 — Run the Ignition-Sense Wire (If Applicable)

The SmartPass 120 can receive a signal from your ignition circuit to know when the engine is running and when it's off. Check the CTEK manual for your specific wiring configuration. This wire tells the unit to allow full charging when the alternator is active, and to disconnect the secondary battery from the primary when the engine is off — so a flat leisure battery can never drag down your starter battery. Route this wire neatly through an existing grommet in the firewall, away from heat and moving parts.

Step 7 — Double-Check All Connections, Then Reconnect the Negative Terminal

Before you reconnect the battery, use your multimeter to check continuity and confirm there are no unintended shorts. Inspect every connection visually — no bare copper should be exposed. Once satisfied, reconnect the negative terminal of the primary battery. The SmartPass 120 should power up and its indicator LEDs will confirm its status. Refer to the manual for what each LED pattern means.

Step 8 — Run a Diagnostic Scan and Test Drive

Use the Konnwei KW850 OBD2 Scanner to check for any new fault codes that may have appeared during installation. Start the car and let it idle for five minutes. Watch the SmartPass 120 LEDs — they should indicate that the primary battery is being charged. Take a short test drive, ideally with your accessories running, and then re-scan for codes. Check both battery voltages with your multimeter: primary should be 13.8–14.4V with the engine running, and secondary should begin rising as the SmartPass 120 routes current to it after the primary reaches full charge.

Common Mistakes Indian Car Owners Make During This Setup

1. Using undersized wiring to save money: Thin wire gets hot under high current loads — and in Indian summer heat, an already-warm wire carrying 80A+ becomes a fire risk. Never compromise on cable thickness. The ₹200 you save on wire could cost you your car.

2. Skipping the in-line fuse: Indian roads are hard on wiring. A pothole at the wrong moment can flex a chassis and pinch a cable. Without a fuse, a short circuit becomes a fire. Always fuse both battery lines close to the source.

3. Poor earth connections: Indian vehicles, especially older Mahindra Scorpios or high-mileage Maruti vans, often have corroded chassis earth points hidden under years of road grime. A bad earth causes voltage drops, flickering accessories, and false fault codes that waste hours of workshop time. Clean your earth point to bare metal before connecting.

4. Ignoring moisture sealing during monsoon season: Connections left unsealed in a Mumbai or Kochi monsoon will corrode within one season. Always use heat-shrink tubing over all terminals and consider dielectric grease on exposed connector points. The CTEK Bumper Case 120 handles the unit itself — you handle the wiring.

How Do You Know the Setup Is Done Right?

Confidence comes from verification. Here's what a correctly installed CTEK SmartPass 120 looks like in real-world use:

• Your starter battery reads 13.8–14.4V with the engine running — healthy alternator output
• Your secondary battery begins charging only after the primary reaches its target voltage — exactly as designed
• No new OBD fault codes appear on your Konnwei scanner after the test drive
• All accessories on the secondary battery run without causing any voltage drop warning on your main cluster
• The SmartPass 120 LEDs show a stable, positive status — not flashing an error
• After parking overnight with accessories running, your starter battery still cranks the engine instantly the next morning — that's the whole point

If you're registering your vehicle's electrical modifications or need to check your vehicle's compliance status, the Parivahan Government Portal is the official resource for vehicle documentation in India.
