Autool BT 760 12v 24v Battery Load Tester with Printer
Autool BT 760 12v 24v Battery Load Tester with Printer
Couldn't load pickup availability

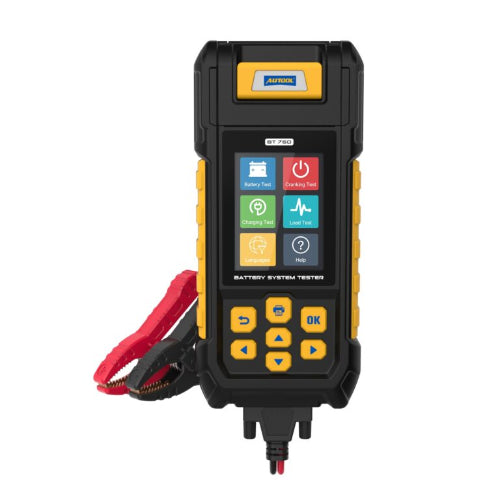

AUTOOL BT760 Battery Tester with Printer & Color Screen.
Cranking / Charging and Max Load Test
AUTOOL BT760 supports testing 12V and 24V automotive battery starting systems and charging systems and covers the full range of battery rating standards for testing. The BT760 battery tester employs new software that displays fast and accurate test results within seconds. It operates over a wide range, with cold start currents as low as 30 amps and cold start currents up to 2000 amps. Compatible with cars, motorcycles, trucks, RVs, beach bikes, SUVs, boats, yachts, lawn mowers and even golf carts, light trucks, and trucks.
The AUTOOL BT760 car battery tester features a color screen and a convenient printer, enhancing the user experience. Adopting the advanced conductance testing technology, BT760 provides you with accurate testing results and prints them in seconds. Recommended by famous bloggers.
AUTOOL BT760 12V and 24v Battery Load Tester Features:
- Max Load & Cranking & Battery & Charging Test: Using the AUTOOL BT760 Car Battery Tester allows you to inspect the overall health of your battery and perform a complete system charge test. You can identify the battery status as Good or Replace. Additionally, it quickly detects common faults in the vehicle starting system and charging system, providing advisable solutions.

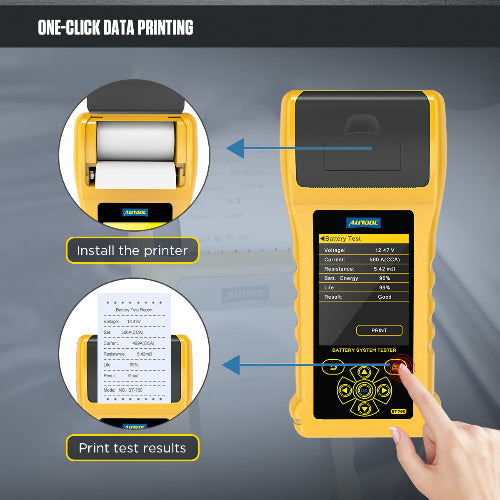

- Color Screen & One-Click Data Printing: With a built-in thermal printer, you can get a diagnostic receipt in seconds and share it with your customers, who only need one press. With its color screen and unique pattern design, it will be easier to view data.
- Extensive Application & Safety: Test standards include most battery standards in the world, CCA IEC EN DIN JIS, and OTHER SPECIES. Super wide range pro tester rated from 100 to 3000 CCA. Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers and even golf carts. Polarity reverse protection ensures that neither the battery nor the device gets damaged.
- Multi-language Support: 14 Languages are available. You can use the product in English, Spanish, Polish, Russian, German, Turkish, Portuguese, French, Italian, Japanese, Traditional Chinese, Chinese, Thai, and Korean.
- 3-year Warranty: For damage caused by non-human factors, we promise to resend parts for free within 3 years.
Operation Steps of AUTOOL BT760 12v and 24v Battery Tester
- Step 1: Connect the 12V battery, red clips to the positive pole, and black clips to the negative pole.
- Step 2: Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within a few seconds.
- Step 3: Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.
- Step 4: Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.
- Step 5: Max Load Test: Select the max load test function. Turn on the car’s electrical appliances, start the car engine, and then click OK.
Car battery inspection expert & Wide testing range
Supports testing of conventional lead-acid batteries, AGM flat batteries, AGM spiral-wound batteries, and gel batteries, etc.

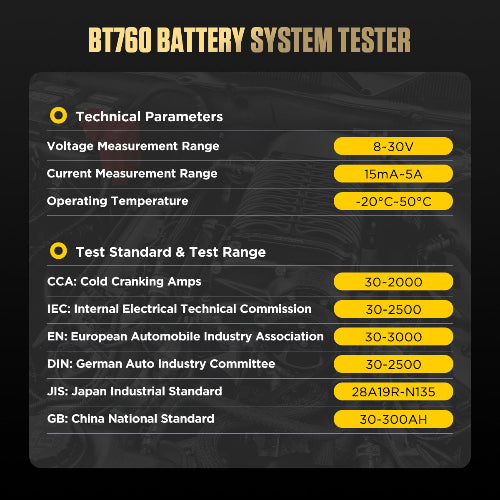

- CCA - Cold-Cranking Amps, specified by SAE. Test range: 30~2000A.
- IEC - International Electrotechnical Commission. Test range: 30-2500A.
- EN - European Standard. Test range: 30-3000A.
- DIN - Deutsche Industrial Standard. Test range: 30-2500A.
- JIS - Japanese Industrial Standard, displayed on the battery as a combination of numbers and letters. Test range: 26A17-N135.
- GB - China National Standard. Test range: 04-300AH.
Comprehensive analysis of 12v and 24v battery

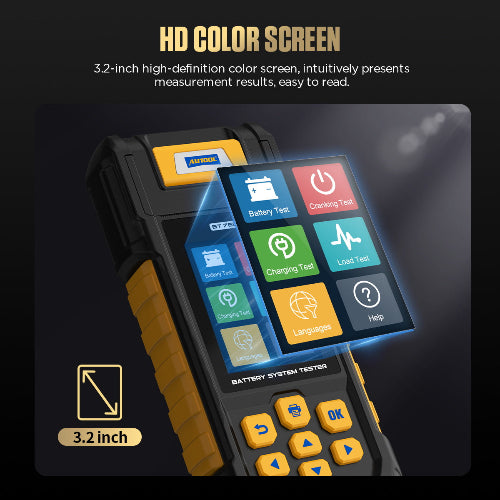

- Displays SOH (state of health), SOC (state of charge), voltage, current, ratings, and readable analysis results on its 3.2-inch color LCD.
- State of Health (SOH) is a figure of merit that compares the condition of a battery (or cell or battery pack) to its ideal condition.
- State of Charge (SOC) is the charge level of a battery relative to its capacity, and the SOC value is often used when discussing the current state of a battery in use.
Cranking test--Automatic & accurate recording of minimum cranking voltage
Start the engine and the tester will automatically record the minimum voltage during this process. For 12V systems, the standard voltage is 9.6V. For 24V systems, the standard voltage is 16V. If the minimum voltage is higher than 9.6V (for 24V systems, the minimum voltage is more than 16V), the battery is good. If the minimum voltage is lower than the standard voltage, the battery is bad.
Charging test---Helps you define a standard voltage range that is safe to use
For 12V system, the standard maximum voltage is 15V, and the standard minimum voltage is 13.3V; for 24V system, the standard maximum voltage is 30V, and the standard minimum voltage is 26.6V. If the current voltage is higher than 15V or 30V, please check the voltage regulator. If the current voltage is below 13.3V or 26.6V, please check the connections, wires and engine.

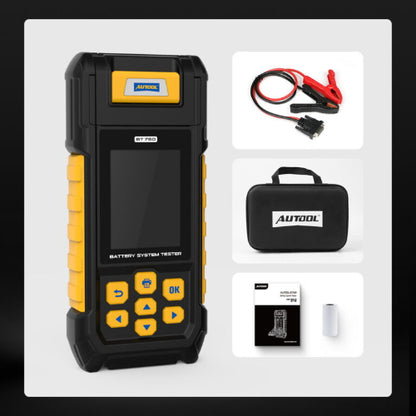

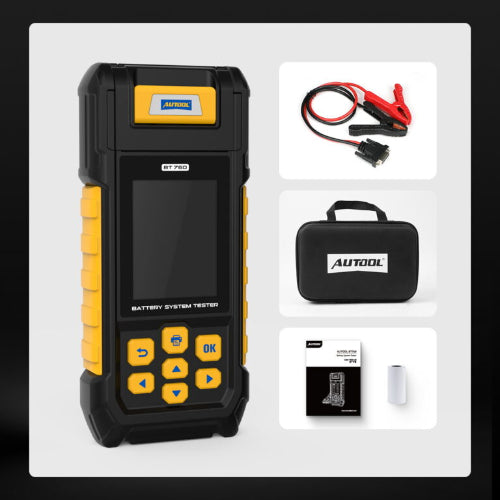

Packing List
- 1pc* AUTOOL BT760 Car Battery Tester main unit
- 2pcs* Full Copper Core Kelvin Clips
- 1pc* Manual
- 1pc* Certificate of Conformity
- 1roll* Printing paper

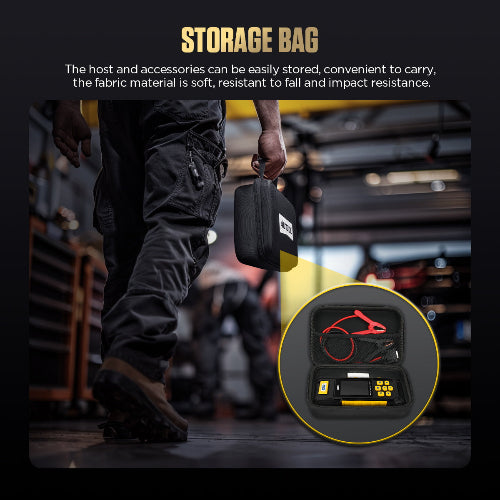

- 1pc* Tool bag
