Advanced Battery Tester with Thermal Printer & Cloud Connectivity
Professional battery testing meets modern technology—test, print, and store results in the cloud. The AUTOOL BT860 combines advanced battery analysis with a built-in thermal printer and optional cloud storage, delivering comprehensive diagnostics for workshops and fleet managers across India.
Key Benefits
- Built-In Thermal Printer: Instant professional reports with customer details and test data
- 12V & 24V Support: Test cars, bikes, trucks, buses, and commercial vehicles
- Wide CCA Range: Test batteries from 100-3000 CCA (highest in class)
- Cloud Storage: Optional cloud backup of test results for fleet management
- Advanced Diagnostics: Battery health, cranking, charging, ripple voltage, and load testing
- All Battery Types: Flooded, AGM, GEL, EFB, Start-Stop batteries
Technical Specifications
| Voltage Range: | 12V and 24V battery systems |
| CCA Range: | 100-3000 CCA (industry-leading range) |
| Battery Standards: | CCA, EN, DIN, IEC, JIS, SAE, CA, MCA |
| Battery Types: | Regular flooded, AGM flat plate, AGM spiral, GEL, EFB, Start-Stop (EFB/AGM) |
| Display: | 4.3" TFT color touchscreen (480x272 resolution) |
| Printer: | Built-in thermal printer (57mm paper width) |
| Test Time: | Under 2 seconds per test |
| Power Supply: | Powered by battery being tested + internal rechargeable battery |
| Internal Battery: | 3000mAh lithium battery (for printer and display) |
| Connectivity: | USB port for PC connection and firmware updates |
| Operating Temp: | -20°C to 60°C |
| Dimensions: | 240mm × 120mm × 70mm |
| Weight: | 1.2 kg (with printer and paper) |
| Cable Length: | 80cm heavy-duty test leads with clamps |
| Compliance: | CE, FCC, RoHS certified |
| Language Support: | English, Spanish, French, German, Italian, Portuguese, Russian, Chinese, Japanese |
| Warranty: | 1-Year Manufacturer Warranty |

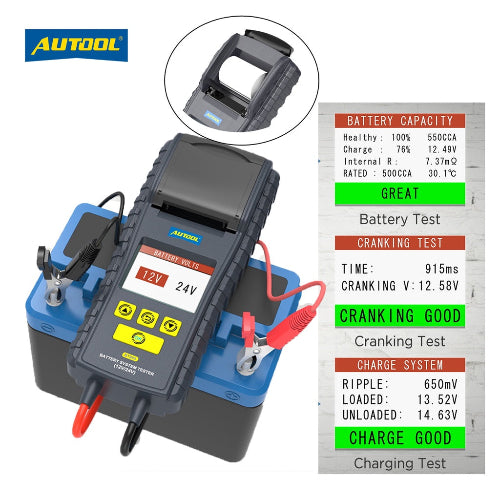

Advanced Testing Functions
- Battery Health Test: Comprehensive analysis of battery condition, capacity, SOH, and life expectancy
- Cranking Test: Measure cranking voltage, starter motor current draw, and performance
- Charging Test: Evaluate alternator output, ripple voltage, diode health, and charging efficiency
- Load Test: Simulate high-current engine start to assess battery under maximum load
- Internal Resistance: Precise measurement of battery internal resistance for early failure detection
- Ripple Voltage Analysis: Detect alternator diode failures and charging system issues
- Voltage Monitoring: Real-time battery voltage with trend analysis and history
- Temperature Compensation: Automatic adjustment for ambient temperature (-20°C to +60°C)
- Start-Stop Battery Testing: Specialized testing for EFB and AGM start-stop batteries
Professional Report Features
- Customizable Headers: Add workshop logo, name, address, and contact details
- Customer Information: Include customer name, vehicle details, VIN, and contact info
- Comprehensive Data: Battery health, CCA rating, voltage, internal resistance, test results
- Pass/Fail Status: Clear color-coded recommendations (Good, Recharge, Replace)
- Timestamp & Serial: Date, time, and unique test serial number for tracking
- Multi-Language Reports: Print reports in 9 languages for diverse customer base
- Cloud Backup: Optional upload to cloud for fleet management and record-keeping

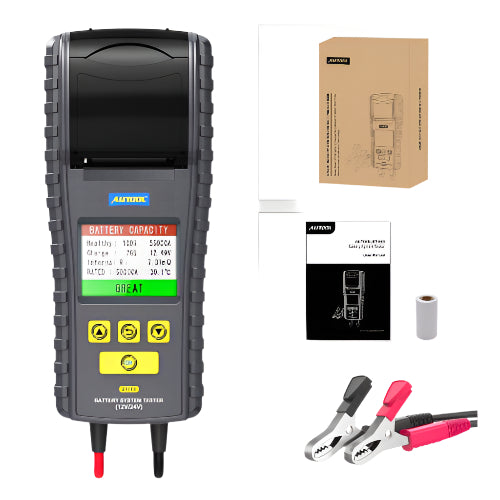

What's Included
- 1× AUTOOL BT860 Battery Tester with Built-In Printer
- 1× Heavy-Duty Test Leads with Clamps (80cm)
- 2× Thermal Paper Rolls (57mm × 30m each)
- 1× USB Cable for PC Connection and Charging
- 1× User Manual (English)
- 1× Quick Start Guide
- 1× Hard Shell Carry Case
- Free PC Software for Data Management
- 1-Year Manufacturer Warranty
Compatible Batteries & Vehicles
Works with all 12V and 24V batteries:
- 12V Batteries: Cars, SUVs, motorcycles, boats, RVs, light commercial vehicles, start-stop vehicles
- 24V Batteries: Trucks, buses, heavy commercial vehicles, construction equipment, marine vessels
- Passenger Cars: Maruti Suzuki, Hyundai, Tata, Honda, Toyota, Mahindra, Ford, Volkswagen, Skoda, Renault, Nissan, Kia, MG
- Premium Brands: BMW, Mercedes-Benz, Audi, Volvo, Jaguar, Land Rover (including start-stop systems)
- Commercial Vehicles: Ashok Leyland, Tata Motors, Eicher, BharatBenz, Volvo, Scania, MAN
- Battery Brands: Amaron, Exide, Livguard, SF Sonic, Bosch, Varta, Optima, Odyssey, ACDelco
How to Use
- Ensure BT860 internal battery is charged (for printer and display operation)
- Load thermal paper roll into printer compartment
- Turn off vehicle ignition and all electrical accessories
- Connect red clamp to battery positive (+) terminal
- Connect black clamp to battery negative (-) terminal
- BT860 powers on automatically—touchscreen displays main menu
- Select battery voltage (12V or 24V) via touchscreen
- Select battery type (Flooded, AGM, GEL, EFB, Start-Stop) and standard
- Enter CCA rating and press TEST—results appear in under 2 seconds
- Review results on 4.3" color touchscreen
- Press PRINT to generate instant professional report
- For cranking/charging tests: follow touchscreen prompts while engine runs
BT860 vs Standard Battery Testers: Professional Advantages
| Feature | Standard Testers | AUTOOL BT860 |
|---|---|---|
| CCA Range | 100-2000 | 100-3000 (highest) |
| Display | 2-3" LCD | 4.3" color touchscreen |
| Printer | ✗ or basic | ✓ (thermal, customizable) |
| Start-Stop Testing | ✗ | ✓ (EFB/AGM specialized) |
| Ripple Voltage | ✗ | ✓ (alternator diode test) |
| Cloud Storage | ✗ | ✓ (optional) |
| PC Software | ✗ | ✓ (free data management) |
| Best For | Basic workshops | Professional workshops & fleets |
Need a more compact tester? Check out the Konnwei KW600 Battery Tester for a portable 12V-only option.
Complete Your Battery Service Toolkit
Pair your BT860 tester with essential battery maintenance tools:
- CTEK MXS 5.0 Smart Battery Charger – Charge and maintain 12V batteries after testing
- CTEK MXT 14 24V Battery Charger – Professional 24V charging for commercial vehicles
- KONNWEI KW720 Battery Tester – Alternative tester with 6V/12V/24V support
- Autool CS520 OBD Scanner – Diagnose electrical system issues
Browse our complete range of diagnostic tools for comprehensive vehicle testing.
Understanding Modern Battery Technology
Learn more about battery testing and maintenance from authoritative sources:
- Battery University: Start-Stop Battery Technology – Comprehensive guide to EFB and AGM start-stop batteries
- SAE International: Battery Testing Standards – Official battery performance testing standards
- Battery University: How to Measure CCA – Technical guide to Cold Cranking Amps testing
- Wikipedia: Automotive Battery – Overview of automotive battery types and technology
Warranty & Support
✓ Authorized Distributor | ✓ 1-Year Warranty | ✓ Free Shipping India-wide | ✓ 7-Day Returns | ✓ Technical Support | ✓ Free PC Software | ✓ Replacement Thermal Paper Available
Stock available in Delhi, Mumbai, Bangalore, Chennai, Pune, and Hyderabad for same-day dispatch. Bulk workshop and fleet pricing available—contact our team.
Frequently Asked Questions
Q: What makes the BT860 better than other battery testers?
A: The BT860 offers the widest CCA range (100-3000), specialized start-stop battery testing, ripple voltage analysis for alternator diagnostics, and optional cloud storage—features typically found only in testers costing 2-3x more.
Q: Can it test modern start-stop vehicle batteries?
A: Yes! The BT860 has specialized testing modes for EFB (Enhanced Flooded Battery) and AGM start-stop batteries, which require different testing parameters than conventional batteries.
Q: How does the cloud storage work?
A: Connect the BT860 to your PC via USB, use the included software to upload test results to cloud storage. Perfect for fleet managers tracking battery health across multiple vehicles over time.
Q: Can I customize the printed reports with my workshop logo?
A: Yes! The BT860 allows full customization of report headers including workshop name, logo, address, phone, and email for professional branding.
Q: Does it work with high-capacity truck batteries?
A: Absolutely. The 100-3000 CCA range covers everything from small motorcycle batteries to large commercial vehicle batteries. The 24V support makes it ideal for truck and bus fleets.
Why AUTOOL BT860 is the Ultimate Workshop Battery Tester
The BT860 represents the pinnacle of battery testing technology at a workshop-friendly price point. Its 100-3000 CCA range is the widest in the industry, ensuring compatibility with every battery from compact car batteries to heavy-duty commercial vehicle batteries. No other tester in this price range offers such comprehensive coverage.
The specialized start-stop battery testing is critical for modern vehicles. Start-stop systems use EFB or AGM batteries with different characteristics than conventional batteries. Testing them with standard parameters yields inaccurate results. The BT860's dedicated start-stop modes ensure accurate diagnostics for these increasingly common battery types.
Ripple voltage analysis sets the BT860 apart from competitors. While other testers measure alternator output voltage, the BT860 analyzes ripple voltage to detect failing diodes—a common alternator problem that standard voltage tests miss. This advanced diagnostic capability helps you identify charging system issues before they cause battery failure or vehicle breakdowns.
For fleet managers, the cloud storage and PC software transform the BT860 from a diagnostic tool into a fleet management system. Track battery health across your entire fleet, predict failures before they happen, schedule preventive replacements, and maintain comprehensive service records—all from one tool.
The 4.3" color touchscreen makes operation intuitive. No more squinting at tiny LCD screens or navigating confusing button menus. Touch, select, test, print—simple workflow that any technician can master in minutes.
