CTEK Pro 120 12V 60A Battery Charger and Support Unit
CTEK Pro 120 12V 60A Battery Charger and Support Unit
Couldn't load pickup availability
CTEK Pro 120 12V | Powerful 120A battery support for the professional workshop.
Features of CTEK Pro 120
- Up to 120A of battery support
- Power supply with selectable 0.1V increments from 12.6V to 14.8V
- Silent, fanless cooling system
- Suitable for all types of 12V batteries, including lithium iron phosphate
- Adaptive (Auto) charging automatically analyses lead-acid batteries and selects the optimal current
- Charger type: 8-step, fully automatic charging cycle

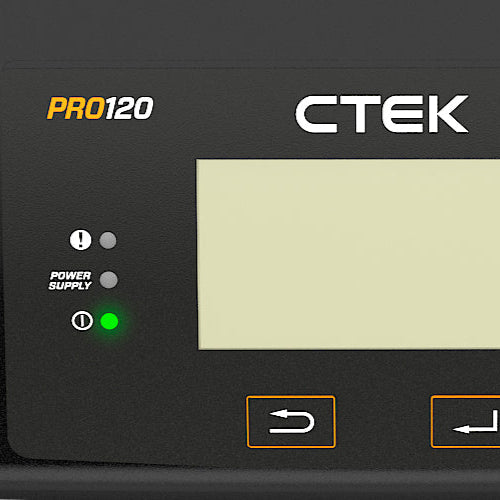

- Multilingual, easy to read LCD display
- Work with all 12V battery types, including Lithium* (LiFePO4)
- 2V start up voltage for charging
- Automatic parallel load compensation
- No power derating
- Extremely low ripple
- Ambient operating temperature: -20˚C to +50˚C (- 4°F to +122°F)
- Degree of protection: IP40
- 2 year warranty

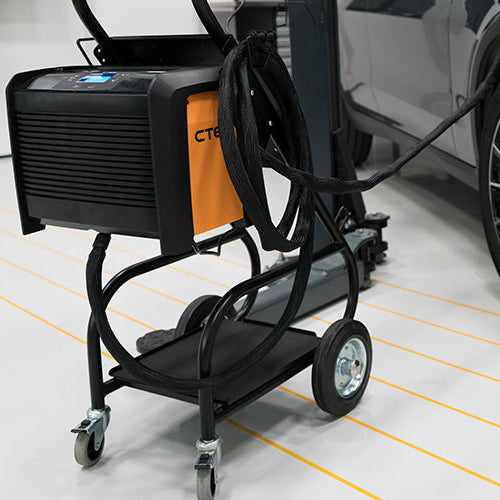

- Optional trolley mounting and WALL HANGAR PRO mounting
Technical Information of CTEK Pro 120
-
Charging category - AC charging
-
Input - 220–240 VAC, 50–60 Hz, 9.2 A
-
Output - 12 V,120 A
-
Power supply mode - Max 120A, selectable 0.1V increments from 12.6V to 14.8V
-
Battery chemistry - Lead acid; Lithium-ion
-
Charging Voltage - Lead acid: 14.4V/15.8V/13.6V Lithium: 13.8V/14.4V/13.3V
-
Battery types - 12 V:; WET; Ca/Ca; AGM; EFB; GEL; LiFePO₄
-
Battery capacity - 10–3600 Ah, lead-acid battery types. 15–1200 Ah, LiFePO₄.
-
Parallel Load - Automatic
-
Back current drain* - Corresponding to less than 2 Ah/month
-
Battery voltage - 12 V
-
Ambient operating temperature - -20 ˚C to +50 ˚C (- 4 °F to +122 °F)
-
Cooling - Natural convection
-
Start voltage - 2.0 V
-
Ripple**Less than 4 %
-
Temperature compensation - Built in temperature sensor
-
Degree of protection - IP40
-
Gross weight (unit in box) - 16.02 kg
-
Dimensions (L x W x H) - 226 x 284 x 408 mm
-
User interfaceLCD graphical display; Multilingual, easy to read
-
Net weight (unit with cables) - 13.77 kg
-
USB - Type B USB 2 port for updates and service.
-
Mains cable length - 2.5m (AC cable) - detachable
-
Warranty - 2 years
-
DisclaimerAll products and product specifications are subject to change without notice, to improve reliability, function or design. In the event of product error, we reserve the right to inspect the product and verify the fault. All product returns are subject to our standard warranty terms.
